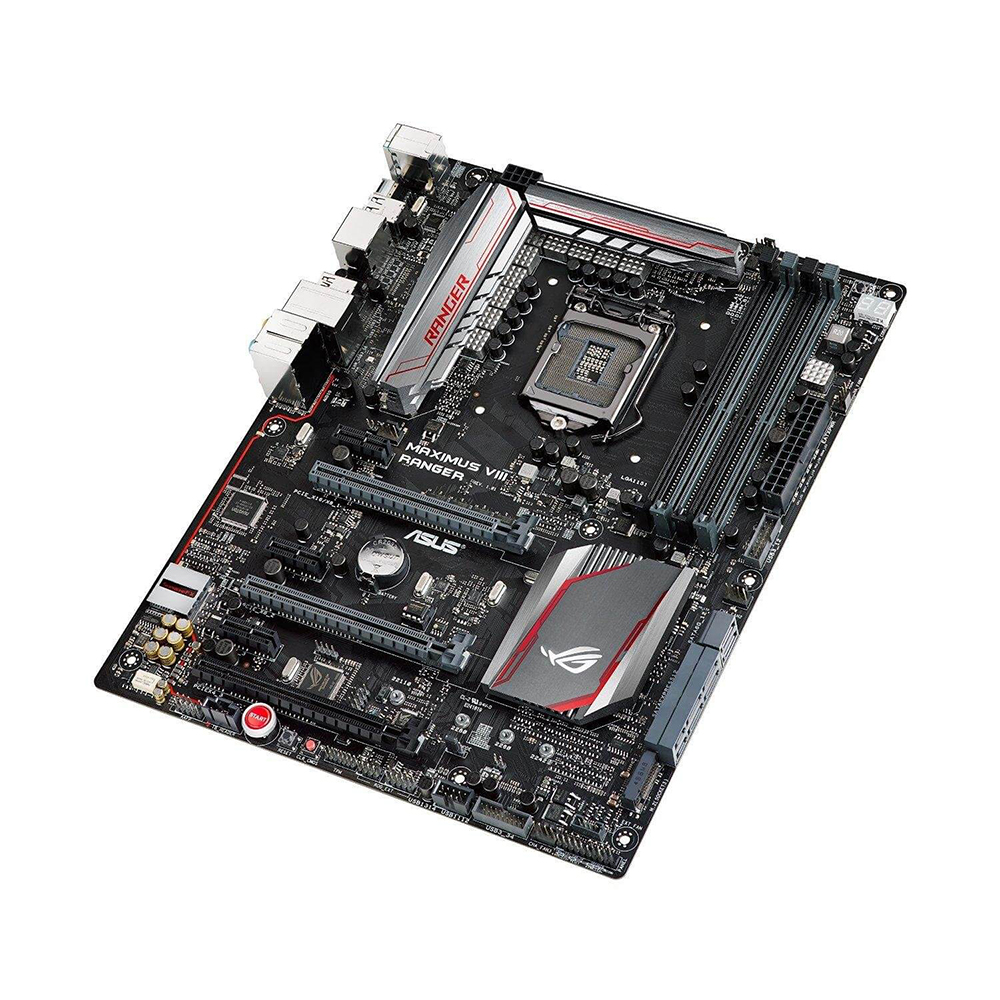

Placa ASUS Maximus VIII Ranger Intel1151 DDR4 HDMI Pcx3.0
No disponible actualmente
Marca:
Asus - P/N: 90MB0LX0-M0EAY0 | REF: QTY90MB0LX0-M0EAY0
Envío:
Cantidad:
Disponibilidad:
Opiniones:
Sin opiniones
2 añosde garantía
30 díasde devolución
100%pago seguro
Añadir a la lista de deseosCPU
Intel Socket 1151 for 6th Generation Core Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel Z170
Memory
4 x DIMM, Max. 64GB, DDR4 3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports AMD 3-Way CrossFireX Technology
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)
1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
3 x PCIe 3.0/2.0 x1 (x1 mode, black)
Storage
Intel Z170 chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*1
6 x SATA 6Gb/s port(s), gray, , 4 ports from 2 x SATA Express
2 x SATA Express port, gray
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports*2
Supports Intel Smart Response Technology*2
LAN
Intel I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Anti-surge LANGuard
Audio
ROG SupremeFX 2015 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- SupremeFX Shielding Technology
- ESS ES9023P DAC: dB SNR, dB THD+N (Max. kHz/ -bit)
- TI RC4580 2VRMS audio OP AMP(s)
Audio Feature :
- Gold-plated jacks
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- Sonic SenseAmp
- Sonic Studio II
- Sonic Radar II
USB Ports
Intel Z170 chipset :
6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)
Intel Z170 chipset : *3
8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)
ASMedia USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-CTM)
ASMedia USB 3.1 controller :
1 x USB 3.1 Gen 2 port(s) (1 at back panel, red, Type-A)
ROG Exclusive Features
ROG RAMCache
Overwolf
Start Button
Reset Button
LN2 Mode
Mem TweakIt
KeyBot II
- One-click Overclocking
- X.M.P.
- DirectKey
- ClrCMOS
- Power On
UEFI BIOS features :
- O.C. Profile
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
ROG RAMDisk
Extreme Tweaker
Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB 3.1 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
Remote Entertainment
- Media Streamer
- HyStream
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Operating System Support
Windows 10 , 64bit
Windows 8.1 , 64bit
Windows 7 , 32bit/64bit
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 (black)USB Type-CTM
1 x USB 3.1 Gen 2 (red)Type-A
2 x USB 3.1 Gen 1 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
Internal I/O Ports
1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: gray, Compatible with 4 x SATA 6.0 Gb/s ports
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
2 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x Water Pump header (4-pin)
1 x LN2 Mode jumper(s)
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
Accessories
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x SLI bridge(s)
1 x Q-connector(s) (1 in 1)
1 x 12 in 1 ROG Cable Label(s)
ROG Fan Label
1 x ROG Door Hanger(s)
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, F9 Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
WfM2.0, DMI3.0, WOL by PME, PXE
Support Disc
Drivers
ROG GameFirst technology
ROG RAMDisk
ROG RAMCache
ROG CPU-Z
ROG Mem TweakIt
Overwolf
Keybot II
Kaspersky Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
