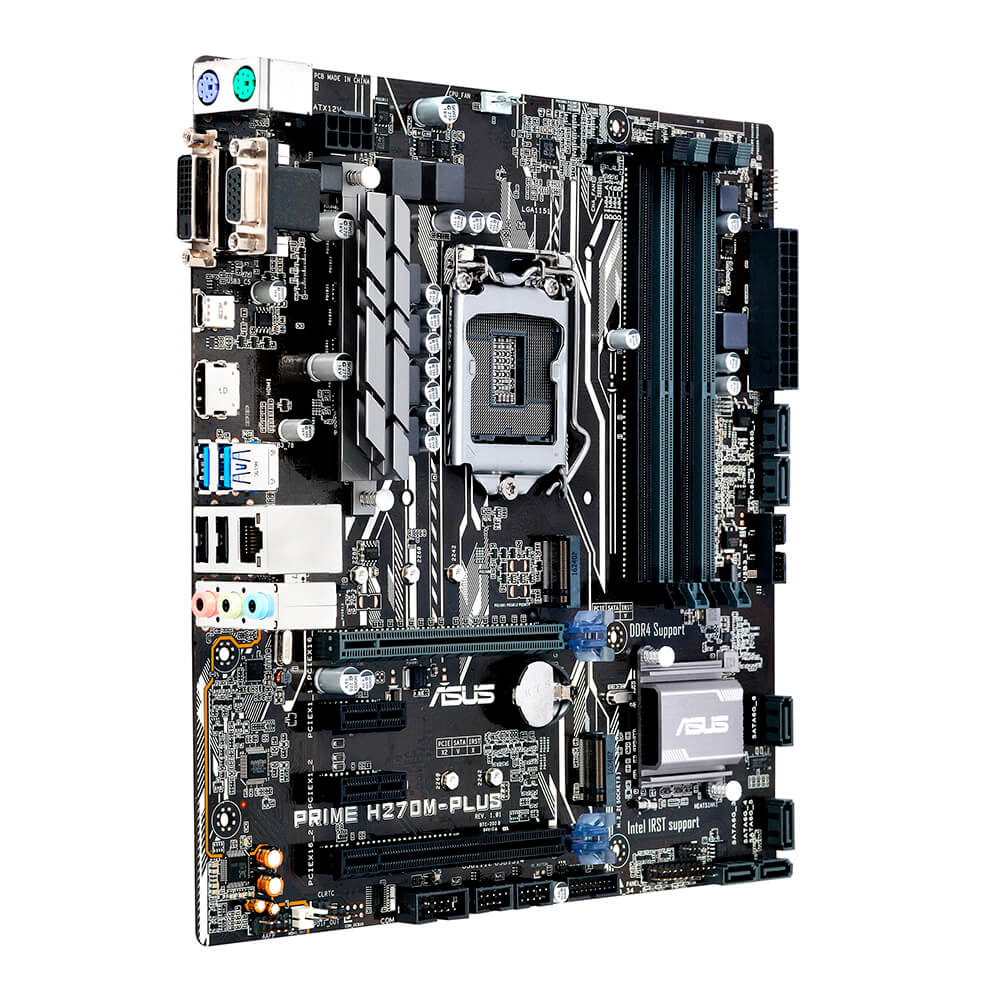

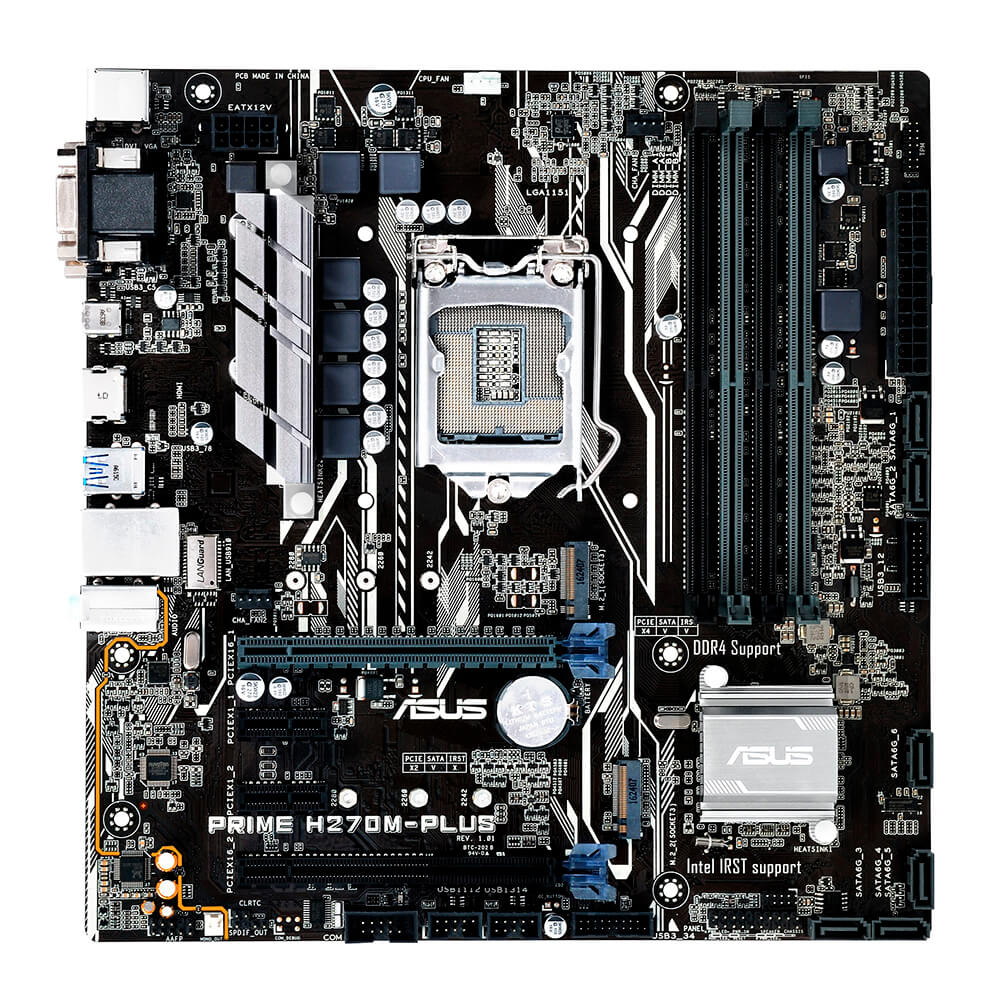

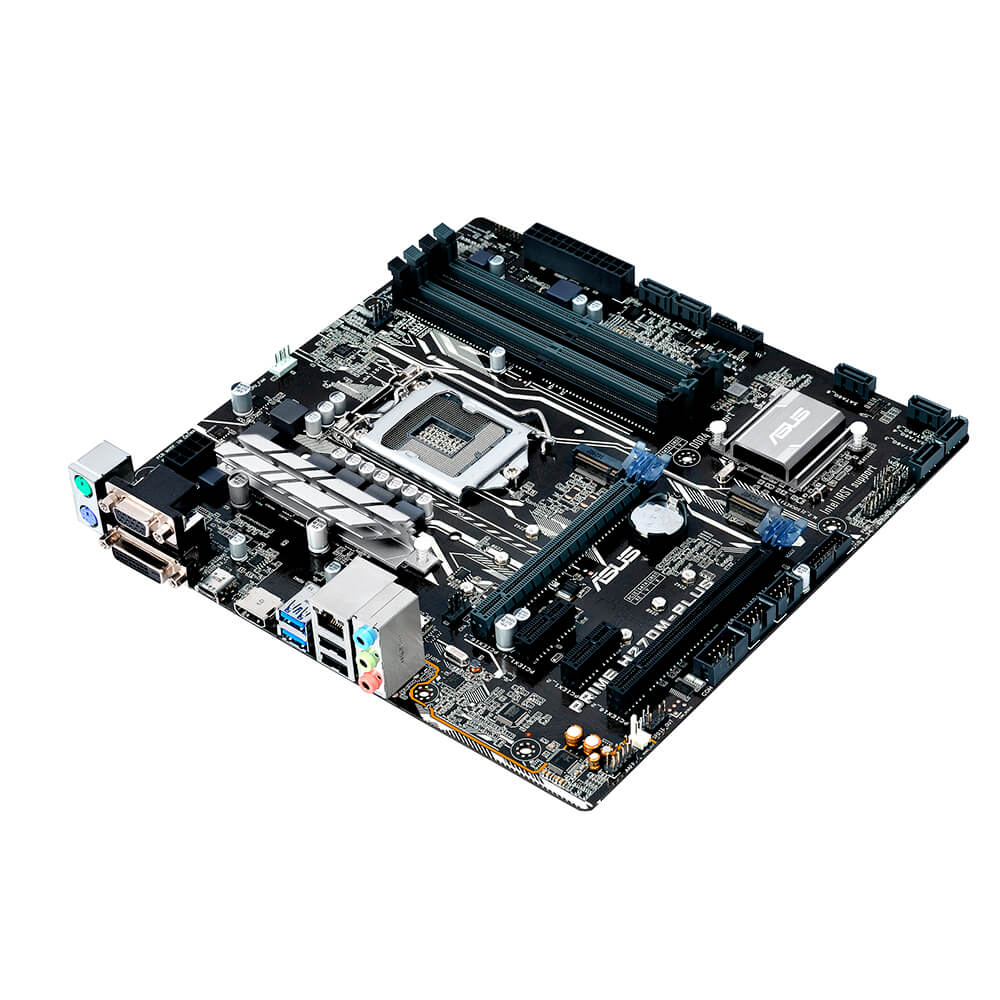

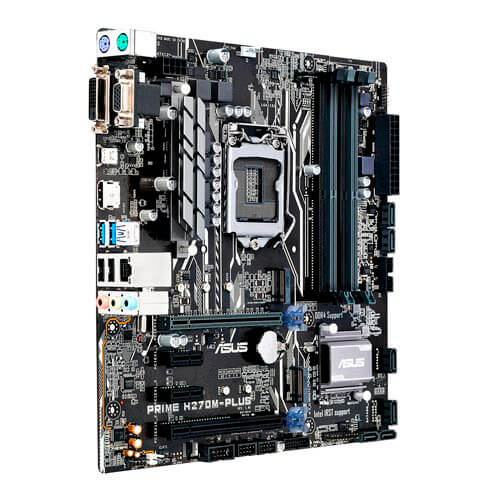

Placa ASUS Prime H270M-PLUS Intel1151 4Ddr4 HDMI Pcie3.0
No disponible actualmente
Marca:
Asus - P/N: 90MB0T00-M0EAY0 | REF: QTY90MB0T00-M0EAY0
Envío:
Cantidad:
Disponibilidad:
Opiniones:
Sin opiniones
2 añosde garantía
30 díasde devolución
100%pago seguro
Añadir a la lista de deseos
ASUS PRIME H270M-PLUS LGA1151 DDR4 HDMI DVI VGA M.2 H270 mATX Motherboard with USB 3.1
Maximize your connectivity and speed with integrated Dual M.2 slots with Intel Optane Memory compatibility, front panel USB 3.0 and a rear USB 3.1 Type C connection
5X Protection III Hardware-level safeguards provide component longevity and reliability
FanXpert 4 Core delivers advanced fan control for dynamic cooling
Dual Patent-pending SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
On-board 3D-printing mounts for creating unique designs on your customized build
CPU
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel H270
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 3 displays simultaneously
Multi-GPU Support
Supports AMD CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1
Storage
1 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3*2, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology*3
Intel Optane Memory Ready *4
LAN
Intel I219V, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports
Intel H270 Chipset :
1 x USB 5Gb/s port(s) port(s) (Type-C, Support 3A power output)
Intel H270 Chipset :
6 x USB 3.0 port(s) (2 at back panel, +blue)
Intel H270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

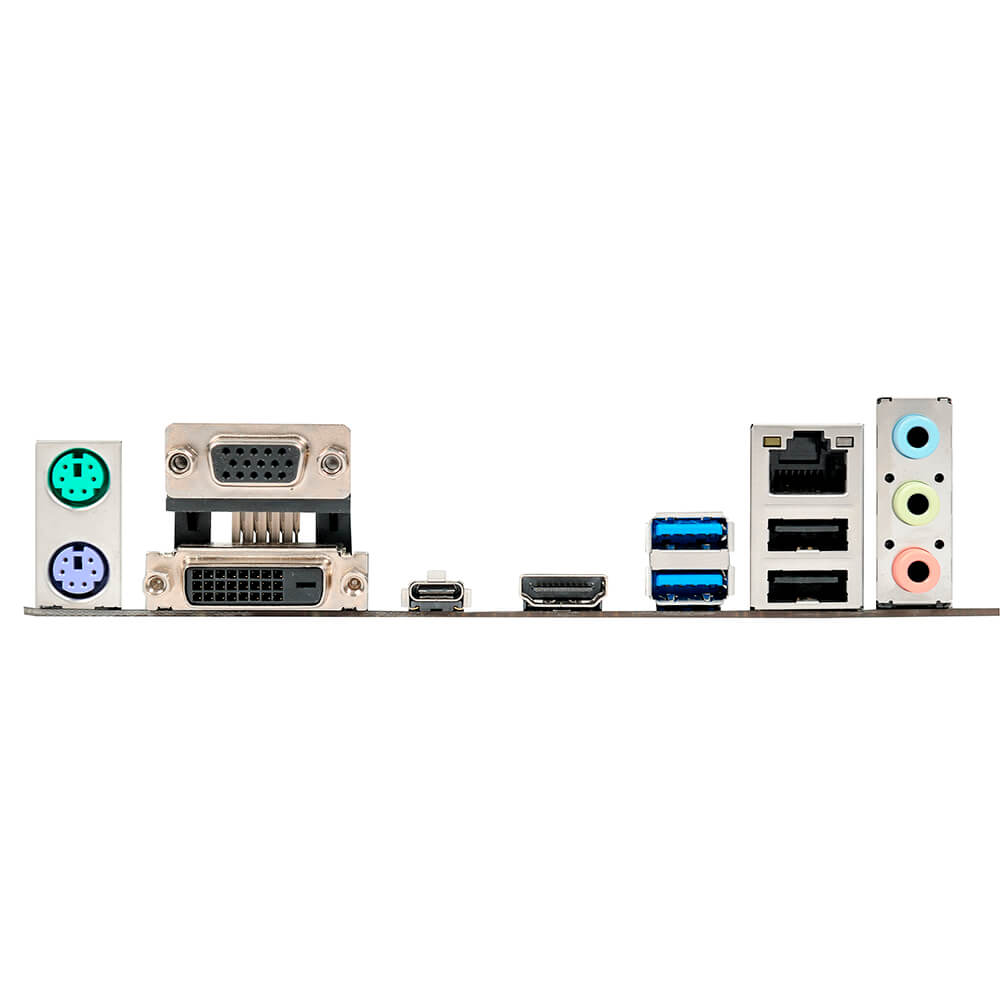

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
1 x 8-channel Audio I/O
Internal I/O Ports
1 x MONO out header
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x TPM header
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
Accessories
User's manual
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System
Windows 10 64-bit
Windows 8 64-bit
Windows 7 32-bit
Windows 7 64-bit
Form Factor
Micro ATX Form Factor
9.6 inch x 9.4 inch ( 24.38 cm x 23.88 cm )
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
Maximize your connectivity and speed with integrated Dual M.2 slots with Intel Optane Memory compatibility, front panel USB 3.0 and a rear USB 3.1 Type C connection
5X Protection III Hardware-level safeguards provide component longevity and reliability
FanXpert 4 Core delivers advanced fan control for dynamic cooling
Dual Patent-pending SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
On-board 3D-printing mounts for creating unique designs on your customized build
CPU
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel H270
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB ports
- Supports VGA with max. resolution 1920 x 1200 @ 60 Hz
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB
Supports up to 3 displays simultaneously
Multi-GPU Support
Supports AMD CrossFireX Technology
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1
Storage
1 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3*2, with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology*3
Intel Optane Memory Ready *4
LAN
Intel I219V, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports
Intel H270 Chipset :
1 x USB 5Gb/s port(s) port(s) (Type-C, Support 3A power output)
Intel H270 Chipset :
6 x USB 3.0 port(s) (2 at back panel, +blue)
Intel H270 Chipset :
6 x USB 2.0 port(s) (2 at back panel, )
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
2 x USB 3.0 (blue) Type-A
2 x USB 2.0
1 x 8-channel Audio I/O
Internal I/O Ports
1 x MONO out header
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x TPM header
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
Accessories
User's manual
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x SCD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System
Windows 10 64-bit
Windows 8 64-bit
Windows 7 32-bit
Windows 7 64-bit
Form Factor
Micro ATX Form Factor
9.6 inch x 9.4 inch ( 24.38 cm x 23.88 cm )
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
| Watios Consumo / Potencia Real: | 70 |
| Socket Intel: | 1151 6ª Generación 1151 7ª Generación |
| Chipset INTEL: | H270 |
| Velocidad Memoria: | DDR4 - 2133MHz DDR4 - 2400MHz |
| Factor de Forma: | DIMM |
| Número de Módulos: | 4 |
| Memoria RAM Max. (GB): | 64 |
| Memoria ECC/No-ECC: | No-ECC |
| Nº de Canales: | -- |
| Conexiones de Video: | 1x VGA (D-Sub) 1x Dual-link DVI-D 1x HDMI |
| Conectores de Vídeo: | D-Sub Dual-Link DVI-D HDMI |
| Conectores Almacenamiento: | 1x M.2 socket 3 - modo SATA y PCIE x4 1x M.2 socket 3 - modo SATA y PCIE x2 6x SATA3 - 6Gbps |
| Conectores Almacenamiento: | SATA3 M.2 socket 3 |
| Conectores SATA3 - 6GB/S: | 6 |
| Conexiones SATA Totales: | 6 |
| Conectores M.2 Slots: | 2 |
| RAID soportado: | Raid 0 Raid 1 Raid 5 Raid 10 |
| Slots de Expansión: | 1x PCIe 3.0 x16 / bus x16 1x PCIe 3.0 x16 / bus x4 2x PCIe 3.0 x1 |
| Slots PCIe / PCI: | PCIe 3.0 x16 / bus x16 PCIe 3.0 x16 / bus x4 PCIe 3.0 x1 |
| Slots PCIe 3.0 x16 / bus x16: | 1 |
| Slots PCIe 3.0 x16 / bus x4: | 1 |
| Slots PCIe 3.0 x1: | 1 |
| Puertos USB: | 1x USB3.1 Tipo-C 6x USB3.0 6x USB2.0 |
| Tipo Puertos USB: | USB3.0 Frontales USB3.0 Traseros USB2.0 Frontales USB2.0 Traseros USB3.1 Tipo-C Traseros |
| Conexiones placa internas USB2.0 para Frontal Caja | 4 |
| Conexiones placa internas USB3.0 para Frontal Caja | 4 |
| Conexiones E/S Internas: | 1x M.2 socket 3 - modo SATA y PCIE x4 1x M.2 socket 3 - modo SATA y PCIE x2 6x Conector(es) SATA 6Gb/s 2x Conector(es) USB3.0 soporta(n) 4 USB3.0 extra 2x Conector(es) USB2.0 soporta(n) 4 USB2.0 extra 1x Cabezal TPM 1x Conector Seri |
| Conectores Internos Comunicaciones: | Conector USB2.0 / Frontal Caja Conector USB3.0 / Frontal Caja |
| Conector Placa 12V (ATX12V): | 1x ATX 12V 4/8 pines |
| Conector Ventilador CPU: | 1x 4 Pines |
| Conector Ventilador Chasis: | 2x 4 pines |
| Conexiones E/S Panel Trasero: | 2x Conectores PS/2 para Teclado (violeta) y Ratón (verde) 1x D-Sub 1x DVI-D 1x HDMI 1x USB 3.1 Tipo-C 2x USB 3.0 2x USB 2.0 1x Red (RJ45) - Gigabit 3x Jack(s) de audio |
| Conectores Panel Trasero: | 2x Puertos PS/2 - Teclado y Ratón D-Sub DVI-D HDMI Jack(s) de audio Red (RJ45) USB 3.1 Tipo-C USB 3.0 USB 2.0 |
| Multi-GPU AMD Crossfire: | Soporta AMD CrossFire |
| Multi-GPU NVIDIA SLI: | No Soporta NVIDIA SLI |
| Formato Placa Base: | Micro-ATX |
En Quonty empezamos a tomar fuerza frente a nuestros competidores, gracias principalmente a las grandes facilidades de venta que ofrecemos a nuestros clientes en productos como PLACA ASUS PRIME H270M-PLUS INTEL1151 4DDR4 HDMI PCIE3.0. Esto se debe en mayor medida a la excelente experiencia de compra que todos nuestros clientes disfrutan y que podrás ver en los comentarios del apartado de comentarios.
Quonty ofrece además la garantía de disfrutar de una compra online segura mediante el Certificado de Confianza Online.
Además, trabajamos con las mejores marcas. Alguna de ellas como Asus especializada en productos como Placas Base Intel.
Compra segura Placas Base Intel
Comprando online cualquier producto de Placas Base Intel tendrás 30 días para su devolución si no te convence el producto y una garantía de Asus de 2 años ante cualquier fallo o avería.
¿Quieres disfrutar ventajas únicas en tus compras en Quonty? Con el servicio Premium, podrás recibir tu PLACA ASUS PRIME H270M-PLUS INTEL1151 4DDR4 HDMI PCIE3.0 en tan sólo 24 horas, tener acceso a las mejores ofertas del mercado, y te las haremos llegar antes que al resto y todo sin pedido mínimo.
Comercializar Placas Base Intel
Quonty se postula como una web de venta online de referencia en productos informáticos y electrónicos como Placas Base Intel. En nuestra tienda web puedes acceder a un amplio abanico de productos tecnológicos, donde se quiere potenciar la atención al cliente y un óptimo servicio de calidad antes, durante y después de la compra.
En esta tienda online podrás encontrar los mejores artículos Componentes PC a precios factibles y atractivos.
En nuestro escaparate online podrás localizar innumerables referencias para comparar modelos y productos, adaptadas siempre a todos los presupuestos y a las necesidades personales de cada cliente.
¡Consigue online tu PLACA ASUS PRIME H270M-PLUS INTEL1151 4DDR4 HDMI PCIE3.0!
Todavía no hay opiniones para este producto.
