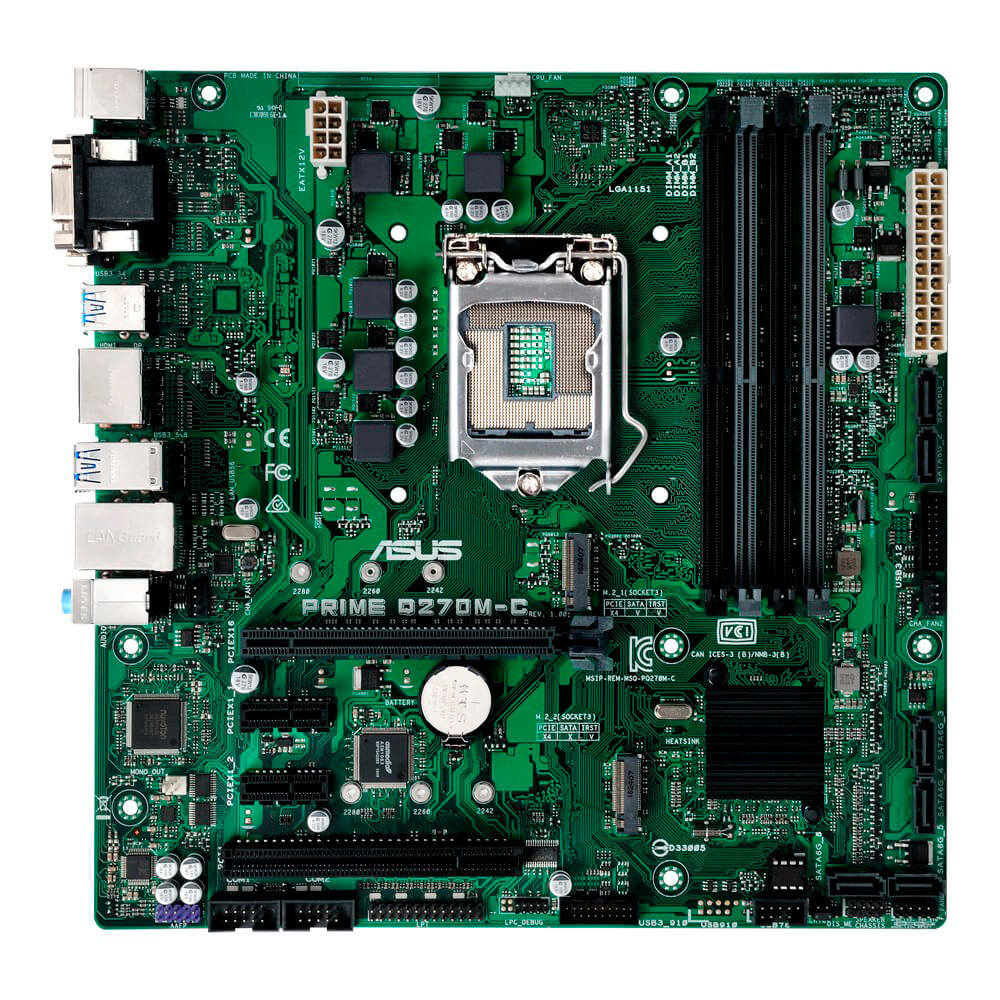

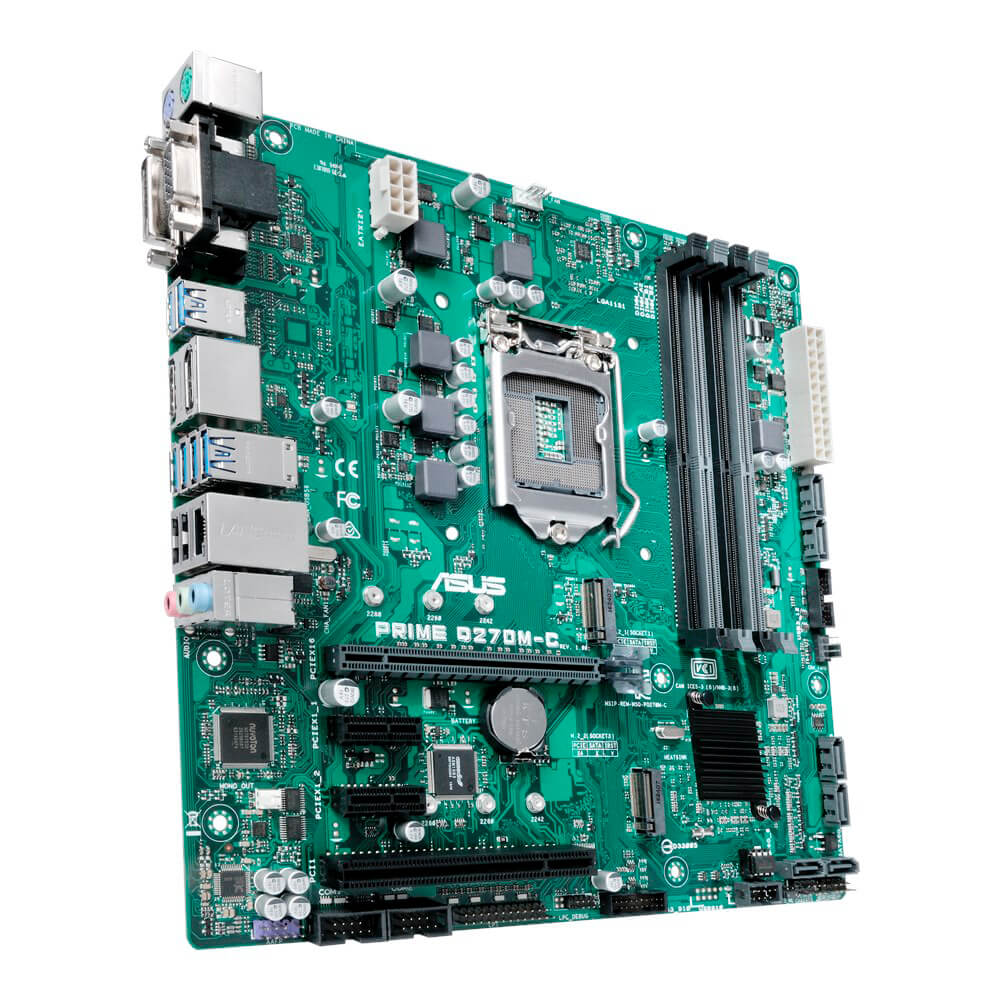

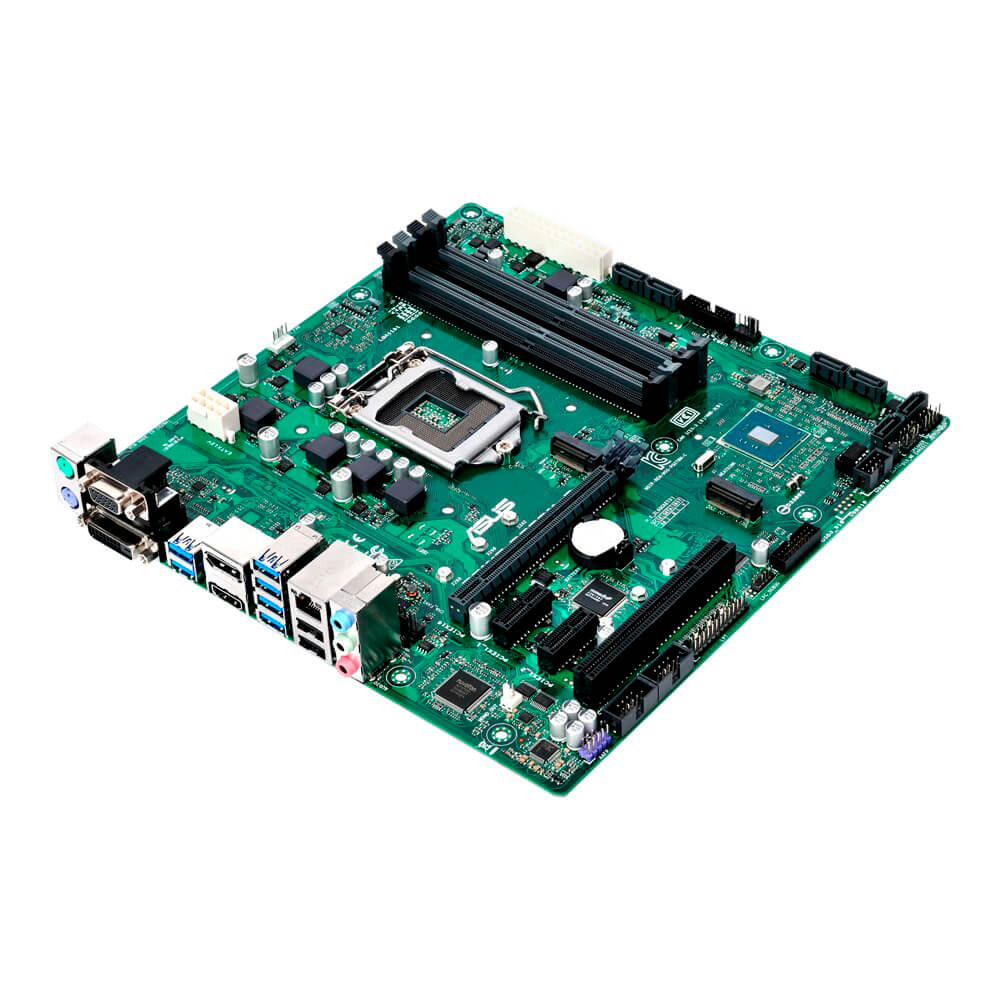

ASUS Prime Q270M-C 1151 DDR4 HDMI M.2 Sata3 Usb3.1 MATX
No disponible actualmente
Marca:
Asus - P/N: 90MB0SZ0-M0EAY0 | REF: QTY90MB0SZ0-M0EAY0
Envío:
Cantidad:
Disponibilidad:
Opiniones:
Sin opiniones
2 añosde garantía
30 díasde devolución
100%pago seguro
Añadir a la lista de deseos
CPU
Intel for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel Q270
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 3.0/2.0 x1
1 x PCI
Storage
Intel Q270 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology
Intel Optane Memory Ready *4
LAN
Intel I219LM, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking
USB Ports
Intel Q270 chipset :
10 x USB 3.1 Gen 1 port(s) (6 at back panel, blue, 4 at mid-board)
Intel Q270 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, black, 2 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
TPM IC Onboard
Digi+VRM
Operating System Support
Windows 10 , 64bit
Windows 8.1 , 64bit *2
Windows 7 , 32bit/64bit *2

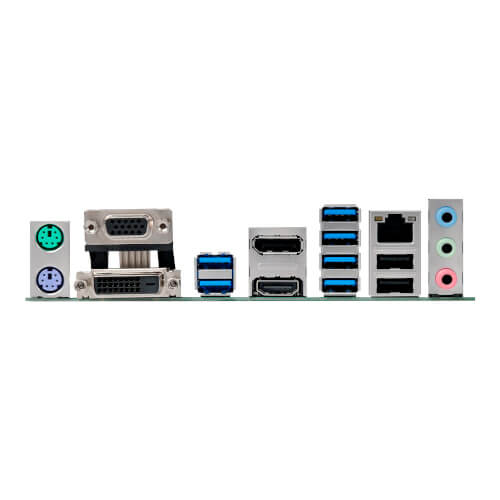

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x MONO out header *3
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x LPC Debug header
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUSbackup, LOGO flash, ME update, DMI value edit,BIOS value edit
Manageability
WfM 2.0, DMI 3.0, WOL, WOR, PXE
Support Disc
Drivers
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
Intel for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel Q270
Memory
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Supports up to 3 displays simultaneously
Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 3.0/2.0 x1
1 x PCI
Storage
Intel Q270 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology
Intel Optane Memory Ready *4
LAN
Intel I219LM, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking
USB Ports
Intel Q270 chipset :
10 x USB 3.1 Gen 1 port(s) (6 at back panel, blue, 4 at mid-board)
Intel Q270 chipset :
4 x USB 2.0/1.1 port(s) (2 at back panel, black, 2 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
TPM IC Onboard
Digi+VRM
Operating System Support
Windows 10 , 64bit
Windows 8.1 , 64bit *2
Windows 7 , 32bit/64bit *2
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x MONO out header *3
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x LPC Debug header
Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUSbackup, LOGO flash, ME update, DMI value edit,BIOS value edit
Manageability
WfM 2.0, DMI 3.0, WOL, WOR, PXE
Support Disc
Drivers
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
| Socket Intel: | 1151 7ª Generación |
| Socket Intel: | 1151 6ª Generación |
| Chipset INTEL: | Q270 |
| Velocidad Memoria: | DDR4 - 2400MHz |
| Velocidad Memoria: | DDR4 - 2133MHz |
| Factor de Forma: | DIMM |
| Número de Módulos: | 4 |
| Memoria RAM Max. (GB): | 64 |
| Memoria ECC/No-ECC: | No-ECC |
| Conexiones de Video: | 1x HDMI |
| Conexiones de Video: | 1x Dual-link DVI-D |
| Conexiones de Video: | 1x VGA (D-Sub) |
| Conectores de Vídeo: | HDMI |
| Conectores de Vídeo: | Dual-Link DVI-D |
| Conectores de Vídeo: | D-Sub |
| Conectores Almacenamiento: | 1x M.2 socket 3 - modo SATA y PCIE x4 |
| Conectores Almacenamiento: | 1x M.2 socket 3 - modo PCIE x4 |
| Conectores Almacenamiento: | 6x SATA3 - 6Gbps |
| Conectores Almacenamiento: | M.2 |
| Conectores Almacenamiento: | SATA3 |
| Conectores SATA3 - 6GB/S: | 6 |
| Conectores M.2 Slots: | 2 |
| RAID soportado: | Raid 0 |
| RAID soportado: | Raid 1 |
| RAID soportado: | Raid 5 |
| RAID soportado: | Raid 10 |
| Slots de Expansión: | 1x PCIe 3.0 x16 / bus x16 |
| Slots de Expansión: | 1x PCIe 3.0 x16 / bus x1 |
| Slots de Expansión: | 1x PCI |
| Slots PCIe / PCI: | PCIe 3.0 x16 / bus x16 |
| Slots PCIe / PCI: | PCIe 3.0 x16 / bus x1 |
| Slots PCIe / PCI: | PCI |
| Formato Placa Base: | Micro-ATX |
