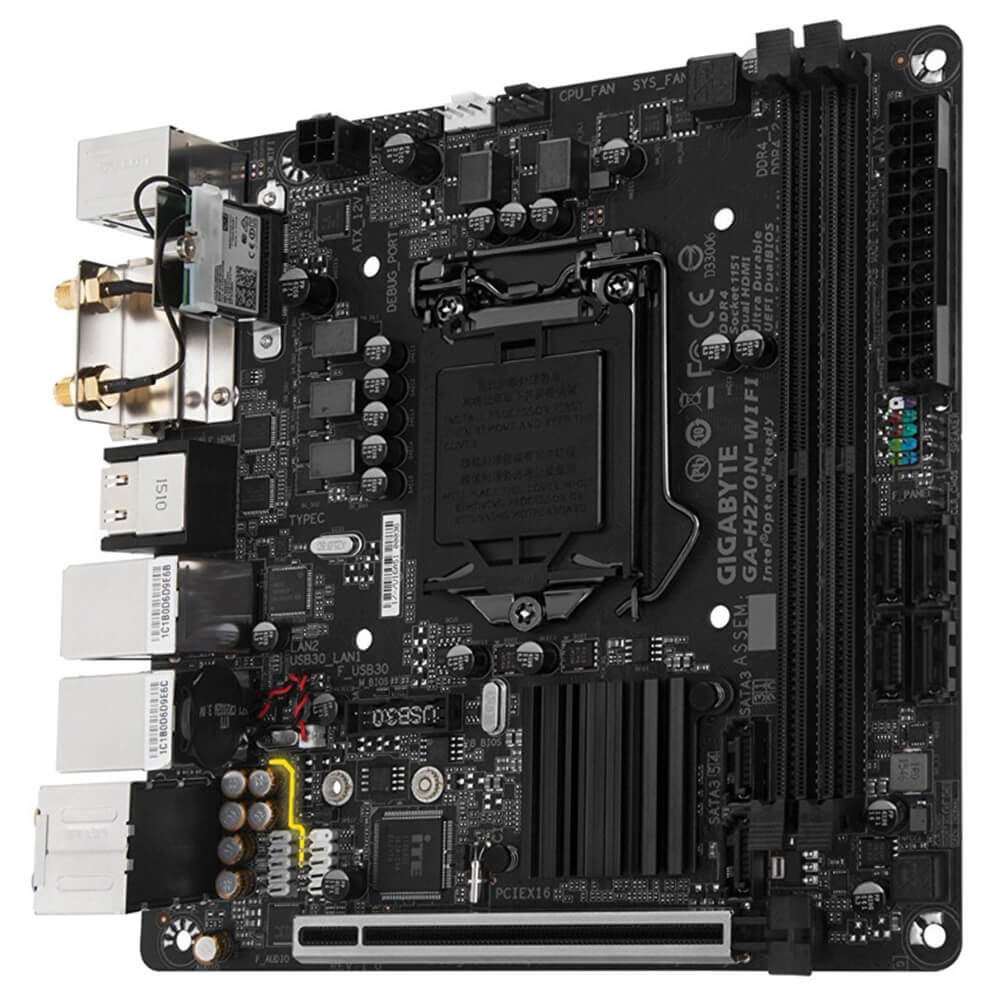

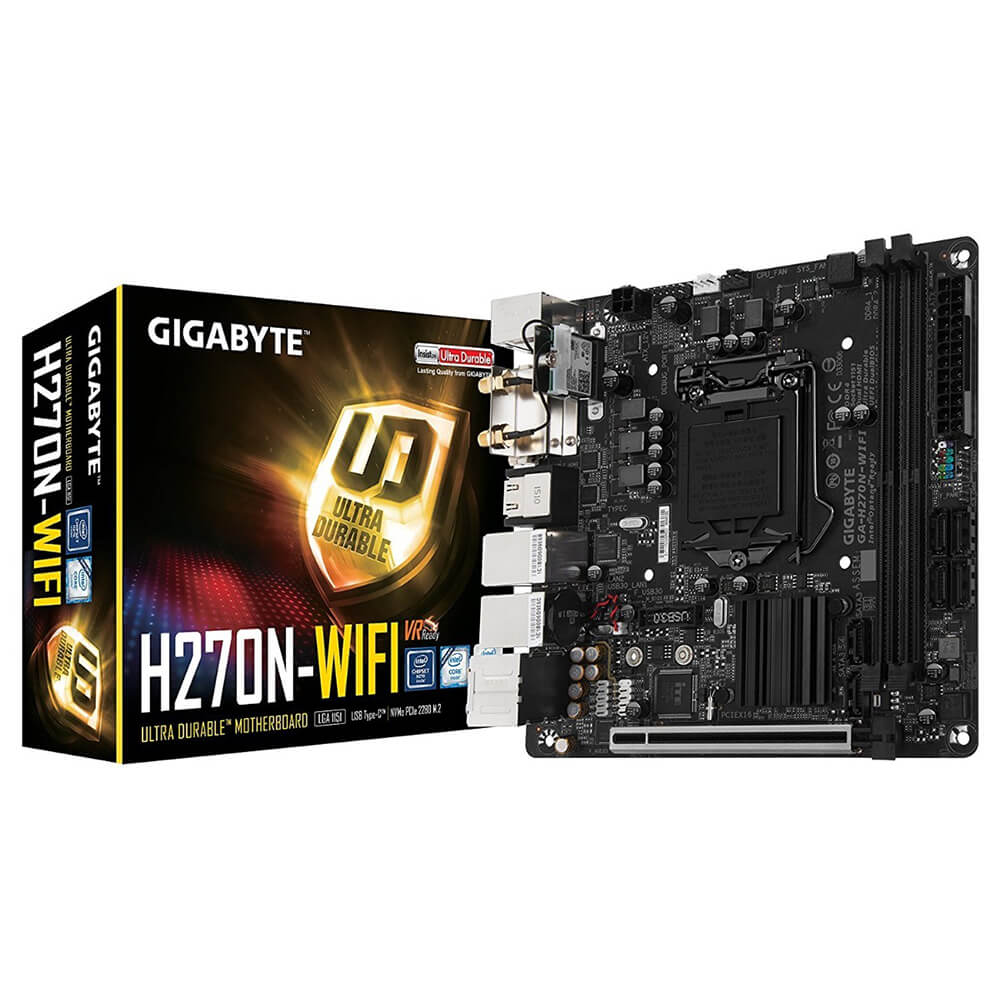

Placa Gigabyte H270N-WIFI Intel1151 DDR4 Pcx3.0 MITX HDMI
No disponible actualmente
Marca:
Gigabyte - P/N: GA-H270N-WIFI | REF: QTYH270NWIFI
Envío:
Cantidad:
Disponibilidad:
Opiniones:
Sin opiniones
2 añosde garantía
30 díasde devolución
100%pago seguro
Añadir a la lista de deseosCPU
Support for 7th and 6th generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
(Please refer CPU Support List for more information.)
Chipset
Intel H270 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400* / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
(Please refer Memory Support List for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio
Realtek ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
2 x Intel GbE LAN chips (10/100/1000 Mbit)
Wireless Communication module
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to 1-7 Internal Connectors, for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
2 x USB 2.0/1.1 ports available through the internal USB header
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector on the back of the motherboard
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

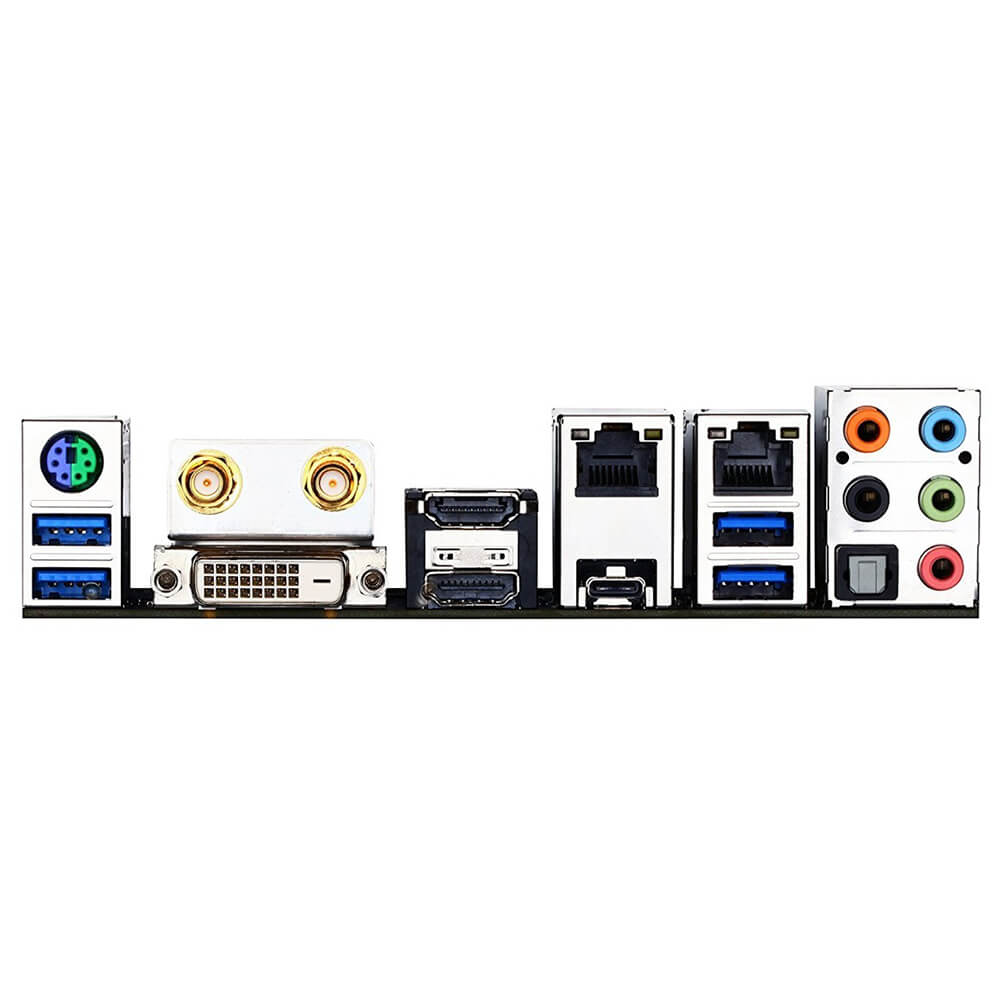

Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x HDMI ports
2 x SMA antenna connectors (2T2R)
1 x DVI-D port
4 x USB 3.1 Gen 1 ports
1 x USB Type-C port, with USB 3.1 Gen 1 support
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for 3TB+ Unlock
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton Internet Security (OEM version)
Intel Wireless Display
Intel Optane Memory Ready
cFosSpeed
Operating System
Windows 10 64-bit (for 7th Generation Intel Processors)
Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)
* Please download the Windows USB Installation Tool from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
Support for 7th and 6th generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
(Please refer CPU Support List for more information.)
Chipset
Intel H270 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR4 2400* / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.
(Please refer Memory Support List for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Audio
Realtek ALC1220 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
2 x Intel GbE LAN chips (10/100/1000 Mbit)
Wireless Communication module
Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
Support for 11ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface
Chipset:
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to 1-7 Internal Connectors, for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
2 x USB 2.0/1.1 ports available through the internal USB header
6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector on the back of the motherboard
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x S/PDIF Out header
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
1 x PS/2 keyboard/mouse port
2 x HDMI ports
2 x SMA antenna connectors (2T2R)
1 x DVI-D port
4 x USB 3.1 Gen 1 ports
1 x USB Type-C port, with USB 3.1 Gen 1 support
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
BIOS Setup
Color Temperature
Cloud Station
EasyTune
Easy RAID
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
Smart Backup
Smart Keyboard
Smart TimeLock
System Information Viewer
USB Blocker
V-Tuner
Support for 3TB+ Unlock
Support for Q-Flash
Support for Xpress Install
Bundle Software
Norton Internet Security (OEM version)
Intel Wireless Display
Intel Optane Memory Ready
cFosSpeed
Operating System
Windows 10 64-bit (for 7th Generation Intel Processors)
Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors)
* Please download the Windows USB Installation Tool from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
| Socket Intel: | 1151 7ª Generación |
| Chipset INTEL: | H270 |
| Velocidad Memoria: | DDR4 - 2400MHz |
| Factor de Forma: | DIMM |
| Número de Módulos: | 1 |
| Memoria RAM Max. (GB): | 32 |
| Memoria ECC/No-ECC: | ECC No-ECC |
| Nº de Canales: | 2 |
| Conexiones de Video: | 2x HDMI 1x Dual-link DVI-D |
| Conectores de Vídeo: | Dual-Link DVI-D HDMI |
| Conectores Almacenamiento: | 1x M.2 socket 3 - modo SATA y PCIE x4 6x SATA3 - 6Gbps |
| Conectores Almacenamiento: | M.2 socket 3 SATA3 |
| Conexiones SATA Totales: | 6 |
| RAID soportado: | Raid 0 Raid 1 Raid 5 Raid 10 |
| Slots de Expansión: | 1x PCIe 3.0 x16 / bus x16 1x PCIe 3.0 x1 |
| Slots PCIe / PCI: | PCIe 3.0 x16 / bus x16 PCIe 3.0 x1 |
| Puertos USB: | 6x USB3.1 Gen1 2x USB2.0 1x USB3.0 Tipo-C |
| Tipo Puertos USB: | USB3.1 Frontales USB2.0 Frontales USB3.1 Traseros USB3.1 Tipo-C Traseros |
| Conectores placa internas USB2.0 para Frontal Caja | 1 |
| Conectores placa internas USB3.1 para Frontal Caja | 1 |
| Conexiones E/S Internas: | 1x Conector de alimentación ATX 12V de 24 contactos 1x Conector de alimentación ATX 12V de 4 contactos 6x Conector(es) SATA 6Gb/s 1x M.2 socket 3 1x Conector(es) USB3.1 1x Conector(es) USB2.0 1x Cabezal de salida S/PDIF |
| Conectores Internos Comunicaciones: | Conector USB3.1 / Frontal Caja Conector USB2.0 / Frontal Caja Cabezal de Salida S/PDIF |
| Conexiones E/S Panel Trasero: | 1x Puerto combo teclado/ratón PS/2 2x HDMI 1x DVI-D 4x USB 3.1 Gen1 1x USB 3.1 Tipo-C 1x Salida S/PDIF óptica |
| Conectores Panel Trasero: | 1x Puerto PS/2 - Teclado o Ratón HDMI DVI-D USB 3.1 Gen1 USB 3.1 Tipo-C |
| Formato Placa Base: | Mini-ITX |
