ASUS ROG Strix Z370-F Gaming LGA 1151 (Socket H4) ATX Placa
Añadir a la lista de deseosCPU
Intel Socket 1151 for 8th Generation Core Processors
Supports 14nm CPU
Supports Intel Turbo Boost Technology 2.0*
* The support of these features depends on the CPU types.
** Refer to www.asus.com for Intel CPU support list.
Chipset
Intel Z370 Chipset
Memory
4 x DIMM, max. 64GB DDR4 4000(OC)*/3866(OC)*/3733(OC)*/3600(OC)*/3466(OC)*/3400(OC)*/3333(OC)*/3300(OC)*/3200(OC)*/3000(OC)*/2800(OC)*/2666/2400/2133 MHz
non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)*
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.
Expansion Slots2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**)
1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)
4 x PCIe 3.0/2.0 x1 slot
* For 2 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX8_2 slot, enable this card under BIOS settings.
** For 3 Intel SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16/x8_1 slot, enable this card under BIOS settings.
VGA
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support: DisplayPort/HDMI/DVI-D ports
Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz
Supports DVI-D with max. resolution 1920 x 1200@60Hz
Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider
Supports up to 3 displays simultaneously
Maximum shared memory of 1024MB
* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Storage
Intel Z370 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology support
- 6 x SATA 6Gb/s ports
- 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x 4 modes)*
- 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)**
- Ready for Intel Optane Memory***
* The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.
*** Intel Optane Technology only supported when using 8th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
**** These functions will work depending on the CPU installed.
LAN
Intel I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Anti-surge LANGuard
ROG GameFirst technology
Audio
ROG SupremeFX S1220A 8-Channel High Definition Audio CODEC
- Supports up to 32-Bit/192kHz playback*
- Impedance sense for front and rear headphone outputs
- High quality 120dB SNR stereo playback output and 113dB SNR recording input
- SupremeFX Shielding Technology
- Dual Headphone Amplifiers
- Jack-detection, Multi-streaming, and Front Panel Jack-retasking
- Optical S/PDIF out port at back panel
Audio Features:
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
*Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio
USB
Intel Z370 Chipset-
- 6 x USB 3.1 Gen1 ports ( 2 ports at back panel blue, 4 ports at mid-board)
- 6 x USB 2.0 ports ( 2 ports at back panel, 4 ports at mid-board)
ASMedia USB 3.1 Gen controller*
- 2 x USB 3.1 Gen2 ports (1 x Type-A red and 1 x Type-C ports at back panel)
* Supports 3A power output
ROG Exclusive Features
ROG RAMCache II
ROG GameFirst IV
ROG CPU-Z
ROG Overwolf
ROG Clonedrive
Special FeaturesPerformance Optimization
5-Way Optimization
- Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages.
Digi+VRM
EPU
- EPU
TPU
- Auto Tuning, TPU, GPU Boost
Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo APP featuring system performance tuning, network piority, and audio scene configuration for selected applications
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design
- Q-Shield
- Q-LED (CPU, DRAM, VGA, Boot Device LED)
- Q-Slot
- Q-DIMM
Gamers Guardian
- SafeSlot
- DIGI+ VRM
- DRAM Overcurrent Protection
- ESD Guards on LAN, Audio and USB ports
- Highly Durable Components
- Stainless Steel Back I/O
ASUS Exclusive Features
- AURA Lighting Control
- 3D Printing Friendly design
- AI Suite 3
- AI Charger

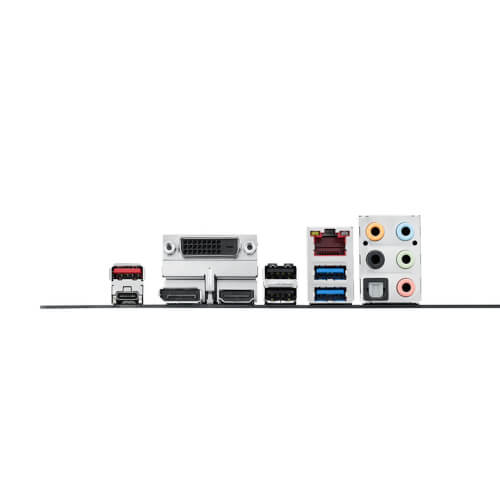

Back I/O Ports2 x USB3.1 Gen2 ports (1 x Type-A red and 1 x Type-C ports at back panel)
1 x DVI port
1 x HDMI port
1 x DP port
2 x USB 3.1 Gen1 ports blue
2 x USB 2.0 ports
1 x Anti-surge LAN (RJ45) port
5 x Audio jacks
1 x Optical S/PDIF out
Internal I/O Ports
2 x USB 3.1 Gen1 connectors support additional 4 x USB 3.1 Gen1 ports
2 x USB 2.0 connectors support additional 4 x USB 2.0 ports
6 x SATA 6Gb/s connectors
1 x 4-Pin M.2_FAN connector
1 x 4-Pin AIO_PUMP fan connector
1 x 4-Pin CPU fan connector
1 x 4-Pin CPU_OPT fan connector
2 x 4-Pin Chassis fan connectors
1 x 5-Pin Extension fan connector
1 x 24-pin EATX power connector
1 x 8-pin EATX 12V power connector
1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Supports PCIE and SATA modes)
1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Supports PCIE mode only)
1 x Front panel audio connector (AAFP)
1 x COM connector
2 x RGB Headers
1 x Addressable Header
1 x TPM connector
1 x System panel connector
1 x Thermal sensor connector
1 x CPU_OV
1 x Clear CMOS jumper (2-pin)
Accessories
User guide
Support DVD
I/O Shield
4 x SATA 6Gb/s cables
1 x SLI HB BRIDGE (2-WAY-M)
1 x RGB LED extension cable
1 x Addressable LED extension cable
1 x 3D Printing Mount
1 x M.2 Screw Package
1 x ROG STRIX Door Hanger
1 x Thermal Sensor Cable
1 x CPU Installation tool
1 x CPU Fan holder
1 x Pack of cable ties
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
ManageabilityWfM2.0, DMI3.0, WOL by PME, PXE
Support DVD
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System Support
Windows 10 64-bit
Form Factor
ATX Form Factor, 12x 9.6 (30.5cm x 24.4cm)
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
| Socket Intel: | 1151 |
| Chipset INTEL: | B360 |
| Velocidad Memoria: | DDR DDR4 |
| Velocidad Memoria OC: | DDR DDR4 |
| Factor de Forma: | DIMM |
| Número de Módulos: | 4 |
| Memoria RAM Max. (GB): | 64 |
| Memoria ECC/No-ECC: | ECC |
| Nº de Canales: | 1 -- |
| Conectores de Vídeo: | 1XHDMI Display Port Dual-Link DVI-D |
| Conectores Almacenamiento: | 6x SATA3 - 6Gbps |
| Conectores Almacenamiento: | M.2 |
| Conectores IDE: | -- |
| RAID soportado: | 0+1 |
| Slots de Expansión: | 3x PCI |
| Conexiones de Video: | 1 DVI-D 1 x Display Port 1 x HDMI |
| Tipo Puertos USB: | USB2.0 Traseros USB3.1 Tipo-A Traseros |
