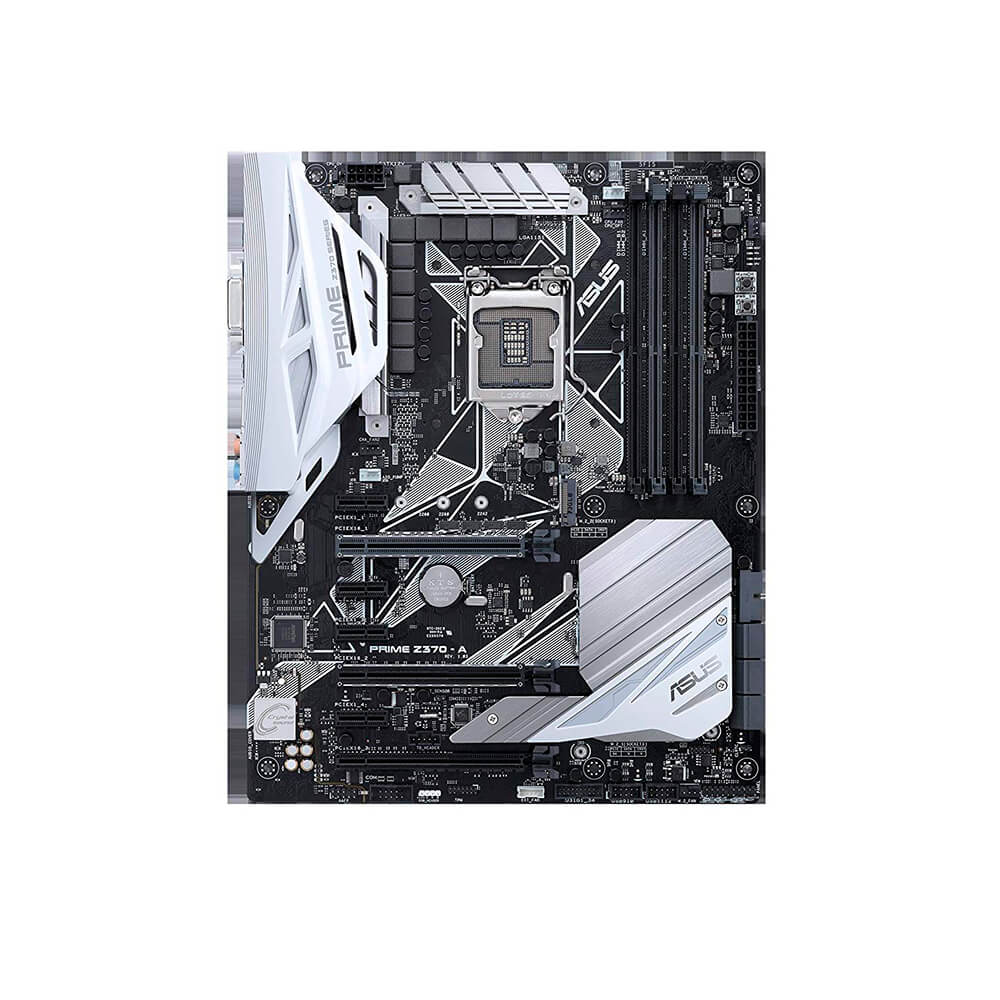

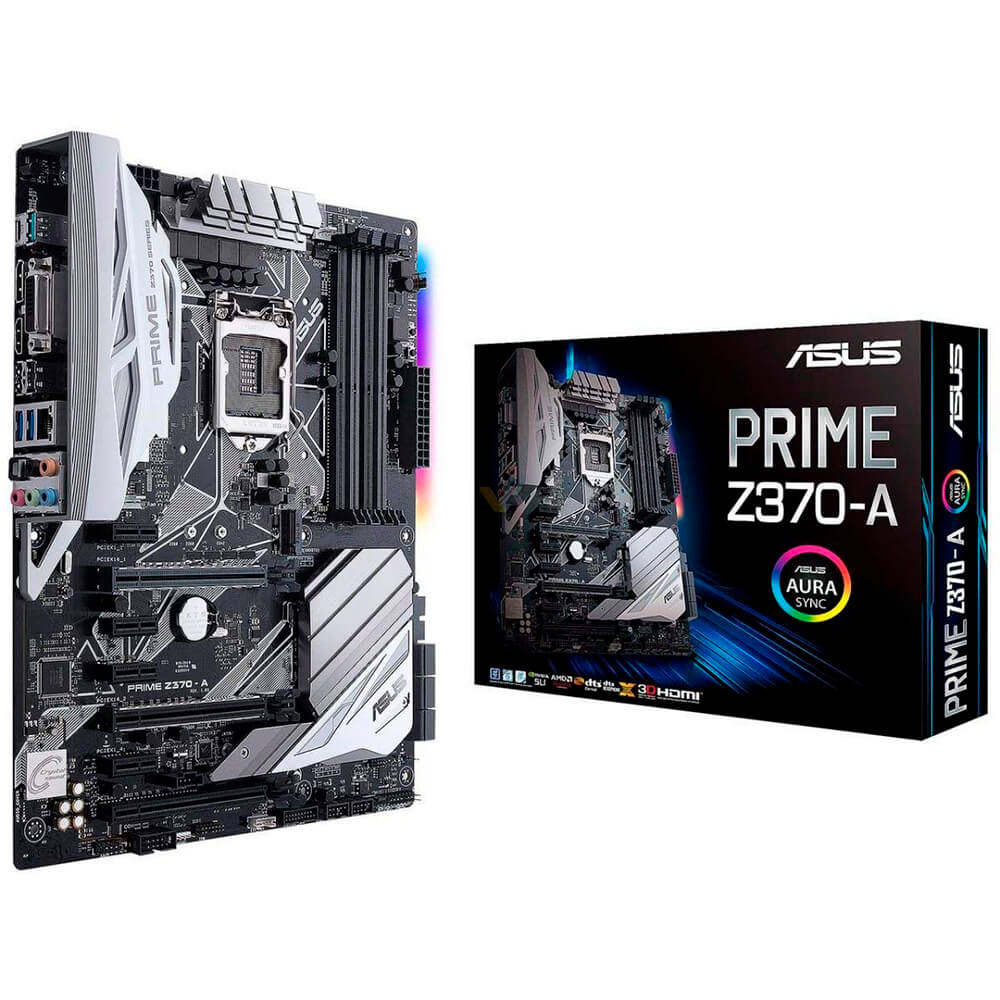

Placa ASUS Prime Z370-A Ii,Intel,1151 (C),Z370
No disponible actualmente
Marca:
Asus - P/N: 90MB0ZT0-M0EAY0 | REF: QTY953670
Envío:
Cantidad:
Disponibilidad:
Opiniones:
Sin opiniones
2 añosde garantía
30 díasde devolución
100%pago seguro
Añadir a la lista de deseosCaracterísticas:
CPU:
Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/ i5/ i3, Pentium and Celeron processors
Supports 14nm CPU
Supports Intel Turbo Boost Technology 2.0*
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset:
Intel Z370 Chipset
Memoria:
4 x DIMM, max. 64GB, DDR4 4000(O.C)*/3866(O.C.)*/ 3733(O.C.)*/3600(O.C.)*/3466(O.C.)*/3400(O.C.)*/3333(O.C.)*/3300(O.C.)*/3200(O.C.)*/3000(O.C.)*/2800(O.C.)*/2666/2400/2133 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.
Slots Expansión:
2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8, x8/x4+x4*, x8+x4+x4/x0**)
1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)
4 x PCI Express 3.0/2.0 x1 slots
* PCIEX16_2 slot supports up to 2 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.***
** PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.***
*** Hyper M.2 X16 series card sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
VGA:
Integrated Graphics Processor- Intel UHD Graphics support
Multi-VGA output support: DisplayPort/HDMI/DVI-D ports
Supports DisplayPort 1.2* with max. resolution 4096 x 2304@60Hz
Supports HDMI 1.4b with max. resolution 4096 x 2160@30Hz
Supports DVI-D with max. resolution 1920 x 1200@60Hz
Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider
Supports up to 3 displays simultaneously
Soporte Multi-GPU :
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way GPU CrossFireX Technology
Almacenamiento:
Intel CPU support with Intel Rapid Storage Technology(RAID 0 & RAID 1)
- PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.*
- PCIEX16_2 slot supports up to 2 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card.*
Intel Z370 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology support
- 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & X4 PCIE mode)**
- 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)***
- 6 x SATA 6.0 Gb/s ports (gray)
- Ready for Intel Optane Memory
* Hyper M.2 X16 series card is sold separately. Install a Hyper M.2 X16 series card and enable this card under BIOS settings.
** The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
*** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode.
LAN:
Intel I219V Gigabit LAN Controller
ASUS LAN Guard
ASUS Turbo LAN Utility
Audio:
Realtek S1220A 8-channel high definition audio CODEC featuring Crystal Sound 3
- Power pre-regulator reduces power input noise to ensure consistent performance
- Separate layer for left and right track, ensuring both sound deliver equal quality
- Impedance sense for front and rear headphone outputs
- Audio shielding ensures precise analog/digital separation and greatly reduced multi-lateral interference
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Unique de-pop circuit to reduce start-up popping noise to audio outputs
- Premium Japan-made audio capacitors
- High quality 120dB SNR stereo playback output and 113dB SNR recording input
- Supports up to 32-Bit/192kHz playback*
- DTS Headphone:X
- Supports jack-detection, multi-streaming, front panel jack-retasking (MIC)
- Optical S/PDIF out port at back I/O
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. 32-Bit/192kHz is only available under Windows 10.
USB:
Intel Z370 Chipset
- 6 x USB 3.1 Gen 1 ports (4 ports @mid-board, 2 ports @back panel)
- 6 x USB 2.0/1.1 ports (4 ports @mid-board, 2 ports @back panel)
Asmedia USB 3.1 Gen 2 controller
- 1 x USB 3.1 Gen 2 port @back panel (teal blue, Type-A)
- 1 x USB 3.1 Gen 2 port @back panel (USB Type C)
Características Exclusivas Asus:
OC Design: ASUS OptiMem
OC Design: ASUS PRO Clock Technology
5-Way Optimization
- Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages.
DIGI+ VRM
-Digital 8+1phase power design with Dr. MOS
TPU
- Auto Tuning, GPU Boost
EPU
- EPU
Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo App featuring system performance tuning, network priority, and audio scene configuration for selected applications.
UEFI BIOS
CrashFree BIOS 3
EZ Flash 3
EZ Tuning Wizard
32Gb/s M.2 onboard - PCIe 3.0 x4
Intel Thunderbolt 3 Support
- Blistering-fast 40Gb/s data transfers upgrades with ThunderboltEX 3 Card.
PC Cleaner:
- Fast and easy way to get rid of unnecessary junk files
AURA Lighting Control:
Turbo LAN
Turbo APP
Q-Design:
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Características Especiales Asus:
M.2 Heat-sink Design
ASUS SafeSlot - Protect your graphics card Investment
ASUS 5X Protection III
- ASUS SafeSlot Core - Fortified PCIe with solid soldering
- ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - Digital 8+1phase power design with Dr. MOS
- ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS ESD Guards - Enhanced ESD protection
- AI Suite 3
- Ai Charger
- MemOK!
ASUS Quiet Thermal Solution
Quiet Thermal Design:
- ASUS Fan Xpert 4
- ASUS Fanless M.2 heatsink Design

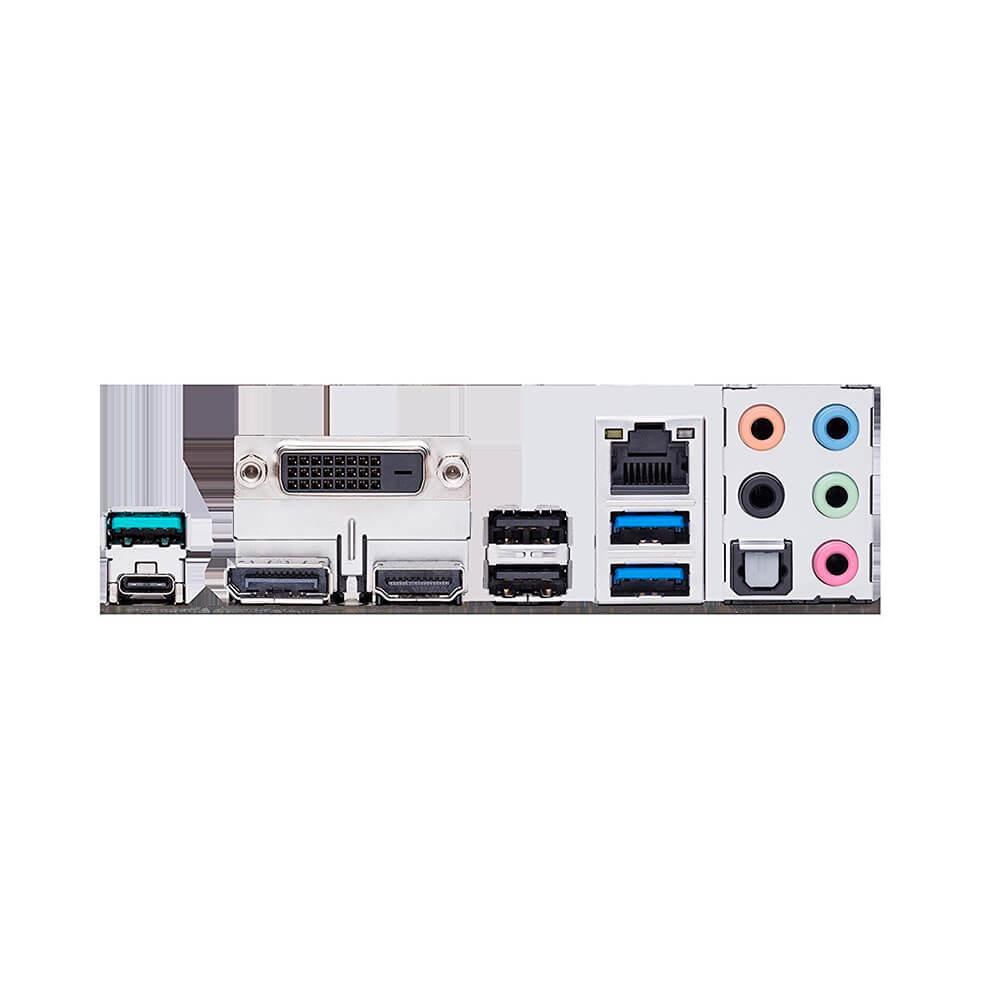

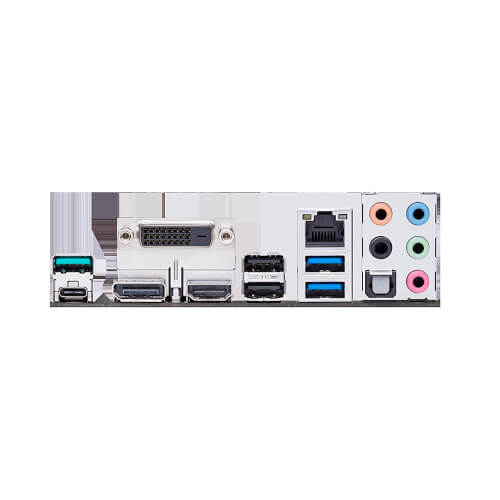

Panel Trasero I/O Puertos
1 x DisplayPort
1 x HDMI port
1 x DVI-D
1 x Optical S/PDIF out
1 x Intel LAN (RJ45) port
1 x USB 3.1 Gen 2 ports (teal blue, Type A)
1 x USB 3.1 Gen 2 port (USB TypeC)
2 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
8-channel Audio I/O ports
Conectores Internos I/O
2 x USB 3.1 Gen 1 connectors support additional 4 USB ports (19-pin)
2 x USB 2.0/1.1 connectors support additional 4 USB ports
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 devices, PCIE mode)
1 x M.2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices, PCIE & SATA mode)
6 x SATA 6.0Gb/s connectors
1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support
1 x CPU OPT Fan header (4-pin)
1 x AIO Pump header (4-pin)
1 x M.2 Fan header (4-pin)
2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support
1 x Aura RGB Strip header
1 x Front panel audio connector (AAFP)
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x TPM connector
1 x COM connector
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x System Panel(Q-Connector)
1 x MemOK! switch
1 x Power-on button
1 x CPU OV jumper
1 x Clear CMOS header
1 x Thermal Sensor header
1 x 5-pin EXT_FAN(Extension Fan) connector
Manageability:
WfM 2.0, DMI 3.1, WOL by PME, PXE
Accessorios
3 x Serial ATA 6.0Gb/s cables
1 x SLI HB BRIDGE(2-WAY-M)
1 x ASUS Q-Shield
1 x Q-connector
1 x M.2 screw package
1 x user's manual
Soporte Sistema Operativo:
Windows 10 64-bit
* Las características del producto, así como su imagen, pueden ser modificadas por el fabricante sin previo aviso.
